NF081012 0.5 IN ID x 0.625 IN OD x 0.75 IN OAL x 0.75 IN FLOD x 0.0625 IN FLTH N
- SKU / Part Number:
- NF081012
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
NF081012 0.5 IN ID x 0.625 IN OD x 0.75 IN OAL x 0.75 IN FLOD x 0.0625 IN FLTH N
NF081012

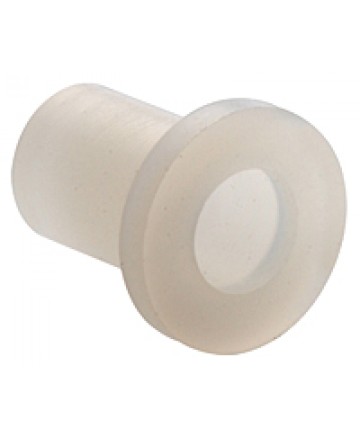

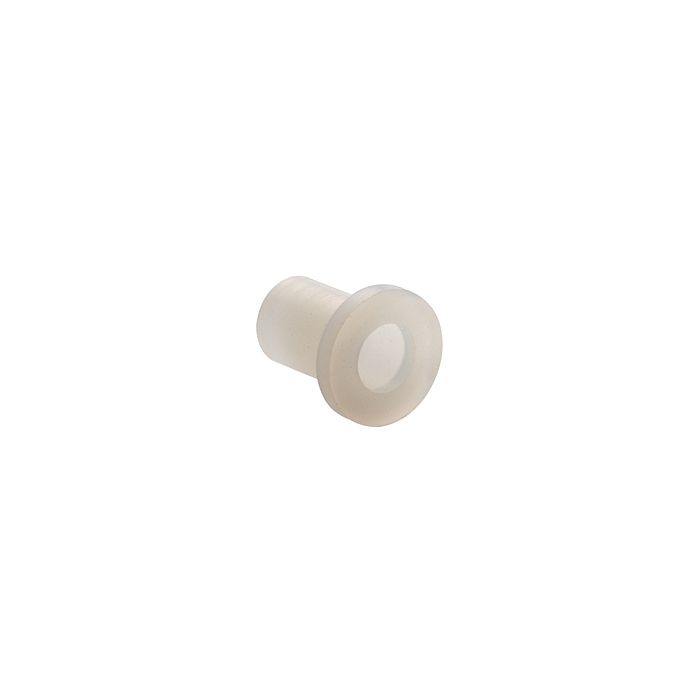

NF081012 0.5 IN ID x 0.625 IN OD x 0.75 IN OAL x 0.75 IN FLOD x 0.0625 IN FLTH Nylon 101 Flanged Bushing
Specifications Catalog Number: NF081012 Molded Nylon 101 Flanged Bushing
Material Standard: Molded Nylon 101 Engineered Plastic
Tolerances
Inner Diameter Tolerance -0.000/+0.005"
Outside Diameter Tolerance-0.000/+0.005"
These low cost engineered plastic bearings have a good balance of strength and toughness. FDA approved non-toxic, molded nylon 101 bearings have good electrical properties
Max Temperature 250F
Molded Nylon 101 sleeve (plain), flange, and thrust bearings provide an economical alternative where performance characteristics and the strength of metal bearings are not required.
Standard off-the-shelf Molded Nylon 101 bearings should function satisfactorily in temperatures up to 250F.
