Product Description
Details
LBB 190100

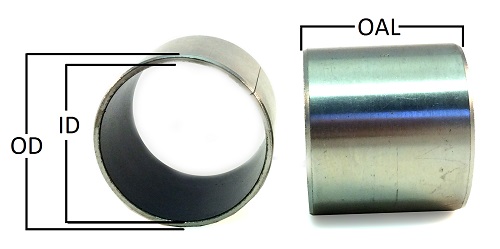

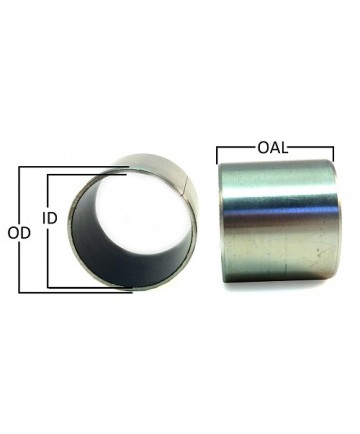

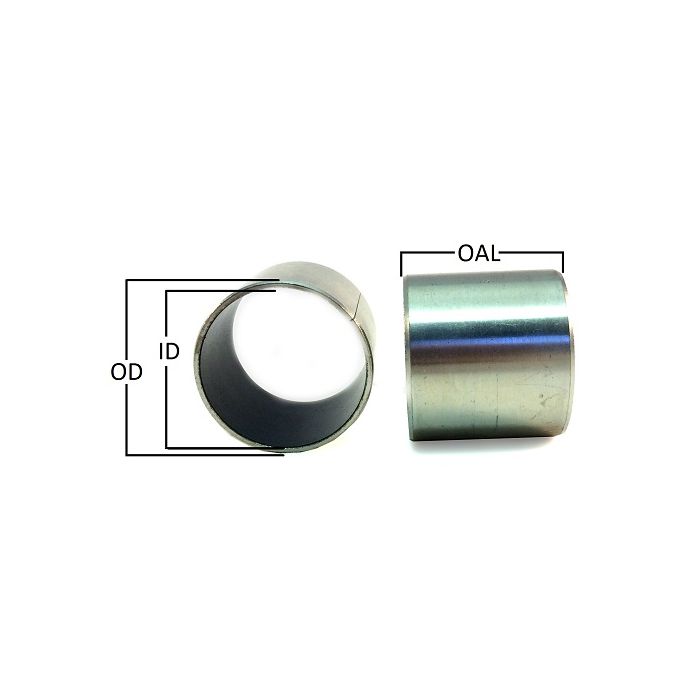

M190100BU 190 mm ID x 195 mm OD x 100 mm OAL Steel Backed PTFE Lined Bronze Sleeve Bushing
Specifications: Catalog Number M190100BU Metric Steel Backed PTFE Lined Sleeve Bushing
Material: A steel-backed composite material comprised of:Low carbon steel backing, sintered bronze, and PTFE
Advantages:
Low carbon steel backing allows for extremely high load capacity
Sintered bronze layer offers optimal heat dispersion
PTFE layer creates a sliding surface with a low coefficient of friction and allows for a wide temperature range
Ideal for heavy loads at moderate speeds or light loads at high speeds. - Max PV 102,000, Max P 36,250, Max V 1900
These standard sized Metric Steel Backed PTFE Lined bearings provide off the shelf economy for most applications.
The BU Steel Backed PTFE Lined Bearings have good physical and mechanical properties and are suitable for rotary, oscillating, movement with the performance of self-lubrication, anti-wear, low friction and lower noise.
Standard off-the-shelf steel backed bearings should function satisfactorily in temperatures from -328 F to +536 F
