  • HBN-202632 | Graphite Plugged Sleeve | 1.25 ID x 1.625 OD x 2 OAL
HBN-202632 | Graphite Plugged Sleeve | 1.25 ID x 1.625 OD x 2 OAL

HBN-202632 | Graphite Plugged Sleeve | 1.25 ID x 1.625 OD x 2 OAL

Availability: In stock

Item #:HBN-202632

$62.10

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

HBN-202632 1.25 IN ID x 1.625 IN OD x 2 IN OAL Enduralube Self Lubricating Graphite Plugged Bronze Sleeve Bushing

HBN-202632

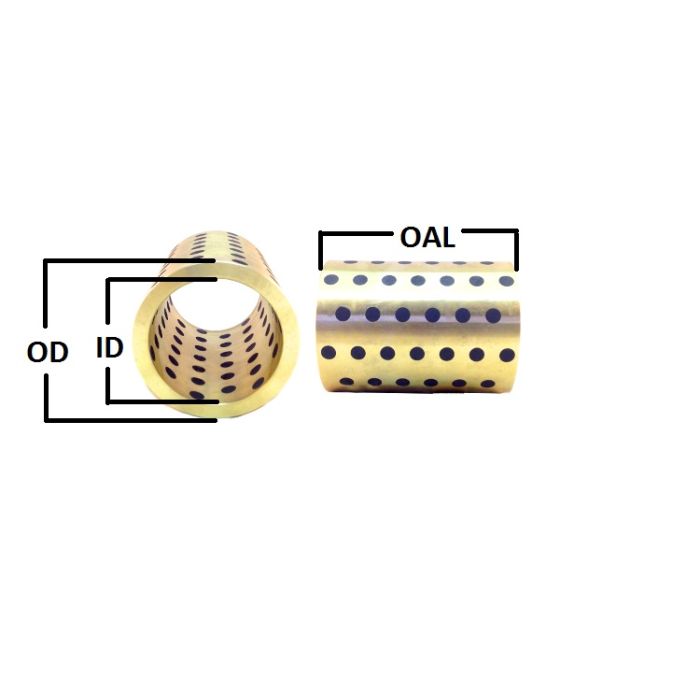

1.25 IN I.D. X 1.625 IN O.D. X 2 IN Overall Length, Graphite Plugged Self Lubrication Cast Bronze Sleeve Bushing

SpecificationsCatalog NumberHBN-202632 Plug Graphite Sleeve Bushing

Material: Cast Bronze and Solid Lubricant Plugs

Chemical Composition- Copper (60-66%), Tin (0.2), Zinc (22-28%), Iron (2.0-4.0%) Aluminum (5.0-7.5%%), Manganese (2.5 -5.0%)

Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds- max PV 46,000, P-Load 7,100, V-SFM-49

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2 typical

Typical Applications: Link Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.

Tags

Product Tags

  • No tags connected to product

Use spaces to separate tags. Use single quotes (') for phrases.

Reviews

  1. Be the first to review this product

WRITE YOUR REVIEW

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Specifications

Specifications

Shipping Notice: Most orders shipped within 24-72 hours. For expedited shipping please select UPS Next Day Air or 2nd Day Air during checkout. These orders will ship same day (Monday-Friday) if ordered before 12:00 pm EST.

Custom Bronze Bushings

HBN-202632 | Graphite Plugged Sleeve | 1.25 ID x 1.625 OD x 2 OAL
HBN-202632 1.25 IN ID x 1.625 IN OD x 2 IN OAL Enduralube Self Lubricating Graphite Plugged Bronze Sleeve Bushing

HBN-202632

1.25 IN I.D. X 1.625 IN O.D. X 2 IN Overall Length, Graphite Plugged Self Lubrication Cast Bronze Sleeve Bushing

SpecificationsCatalog NumberHBN-202632 Plug Graphite Sleeve Bushing

Material: Cast Bronze and Solid Lubricant Plugs

Chemical Composition- Copper (60-66%), Tin (0.2), Zinc (22-28%), Iron (2.0-4.0%) Aluminum (5.0-7.5%%), Manganese (2.5 -5.0%)

Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds- max PV 46,000, P-Load 7,100, V-SFM-49

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2 typical

Typical Applications: Link Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
