FF-718-6  5/8 ID x 3/4 OD x 1-1/8 OAL x 7/8 FLOD x 1/16 FLTH

FF-718-6 5/8 ID x 3/4 OD x 1-1/8 OAL x 7/8 FLOD x 1/16 FLTH

Availability: In stock

Item #:102084

$5.59

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

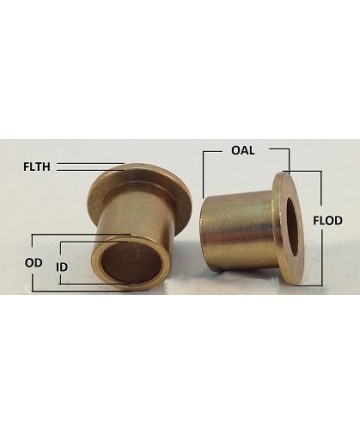

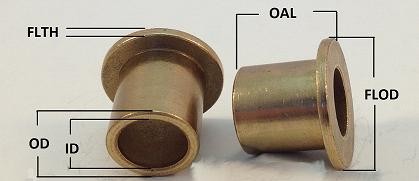

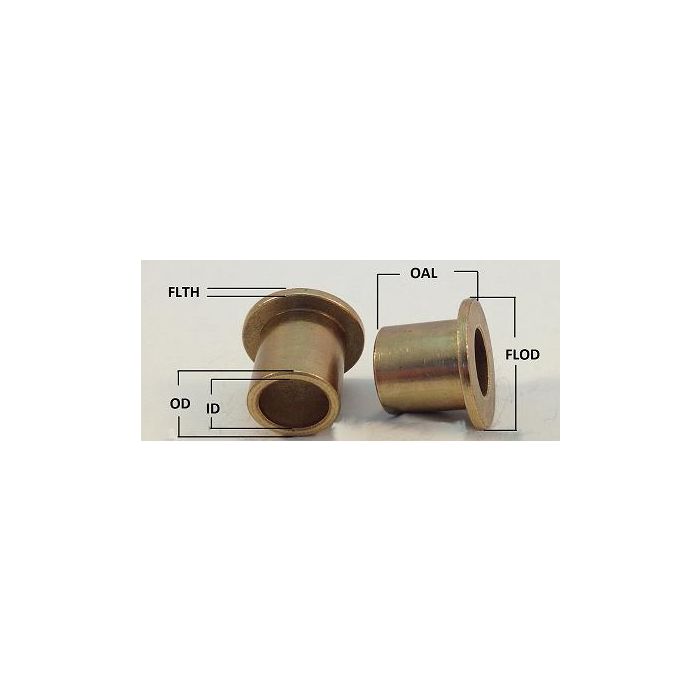

FF-718-6 5/8 ID x 3/4 OD x 1-1/8 OAL x 7/8 FLOD x 1/16 FLTH

102084

0.6275 IN I.D. X 0.7525 IN O.D. X 1.125 IN OAL 0.875 IN FLOD 0.0625 IN FLTH SAE 841 Powdered Metal Bronze, Flanged Sleeve Bearing

Specifications Catalog Number FF-718-6 SAE841 Flanged Sleeve Bearing Oil Impregnated Bronze

Material Powdered Metal / Oil Impregnated Bronze

Material Standard SAE 841

Tolerances

Inner Diameter Tolerance +.000 -.001 in

Outside Diameter Tolerance+.000 -.001 in

Overall Length Tolerance .005 in

Flange OD Tolerance .005 in

Flange Thickness Tolerance .005 in

Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%

MPIF: CT-1000-K26

ASTM: B438 Grade 1, Type 2 Class A

SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1

Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200

Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest.

After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation.

Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.
