  • EXEW081602 | Oil & PTFE Impregnated Washer | 1/2 ID x 1 OD x 1/8 THICK
EXEW081602 | Oil & PTFE Impregnated Washer | 1/2 ID x 1 OD x 1/8 THICK

EXEW081602 | Oil & PTFE Impregnated Washer | 1/2 ID x 1 OD x 1/8 THICK

Availability: In stock

Item #:EXEW081602

$3.49

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

EXEW081602

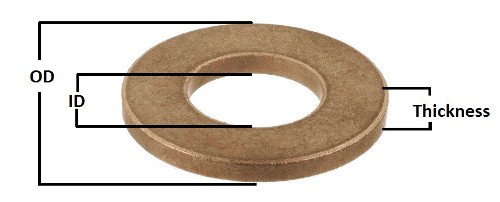

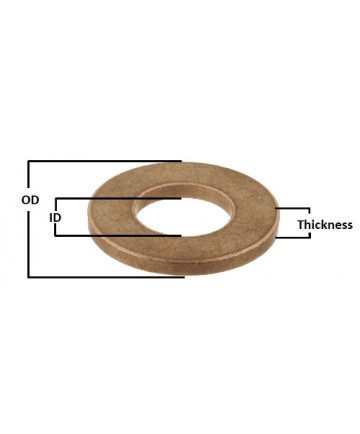

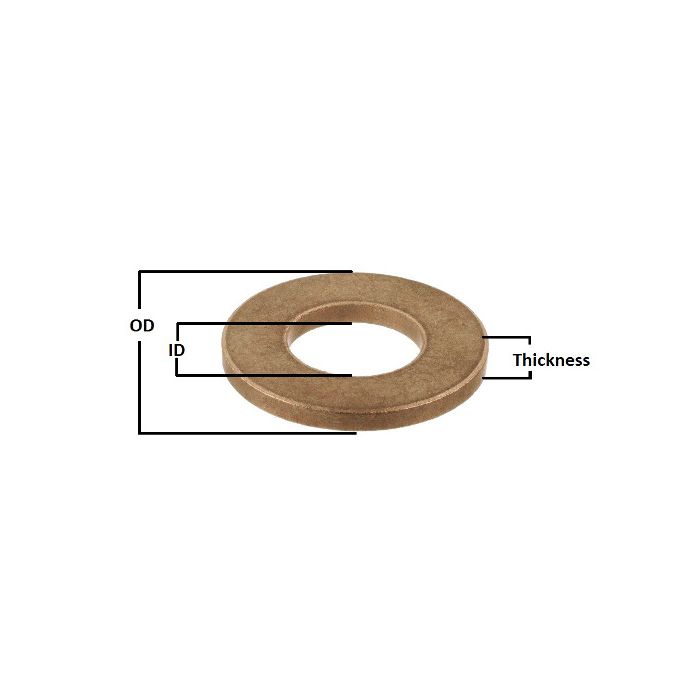

EXEW081602 0.5 IN ID x 1 IN OD x 0.125 IN THICK 841 Extra Thrust Washer

Specifications Catalog Number EXEW081602 841 Extra Oil & PTFE Impregnated Bronze Thrust Washer

Material Standard 841 Extra Oil & PTFE Impregnated Bronze

Tolerances

Inner Diameter Tolerance +0.0020/+0.0040"p>

Outside Diameter Tolerance+0.0020/+0.0030"

841 Extra is ideal for stop, start, and slow speed applications. Conformance to ASTM chemical and physical properties.

Max Temperature 220F

Oil Impregnated with SAE 90 oil with a finely dispersed PTFE. The PTFE oil greatly reduces friction and helps to develop a full lubrication film which is especially required on start up. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm

These sintered bronze bushings also provide a smoother and quieter operation, an easier break-in period and longer bearing life.

Standard off-the-shelf 841 Extra Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA

Tags

Product Tags

  • No tags connected to product

Use spaces to separate tags. Use single quotes (') for phrases.

Reviews

  1. Be the first to review this product

WRITE YOUR REVIEW

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Specifications

Specifications

Shipping Notice: Most orders shipped within 24-72 hours. For expedited shipping please select UPS Next Day Air or 2nd Day Air during checkout. These orders will ship same day (Monday-Friday) if ordered before 12:00 pm EST.

Custom Bronze Bushings

EXEW081602 | Oil & PTFE Impregnated Washer | 1/2 ID x 1 OD x 1/8 THICK

EXEW081602

EXEW081602 0.5 IN ID x 1 IN OD x 0.125 IN THICK 841 Extra Thrust Washer

Specifications Catalog Number EXEW081602 841 Extra Oil & PTFE Impregnated Bronze Thrust Washer

Material Standard 841 Extra Oil & PTFE Impregnated Bronze

Tolerances

Inner Diameter Tolerance +0.0020/+0.0040"p>

Outside Diameter Tolerance+0.0020/+0.0030"

841 Extra is ideal for stop, start, and slow speed applications. Conformance to ASTM chemical and physical properties.

Max Temperature 220F

Oil Impregnated with SAE 90 oil with a finely dispersed PTFE. The PTFE oil greatly reduces friction and helps to develop a full lubrication film which is especially required on start up. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm

These sintered bronze bushings also provide a smoother and quieter operation, an easier break-in period and longer bearing life.

Standard off-the-shelf 841 Extra Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA
