EXEF081208

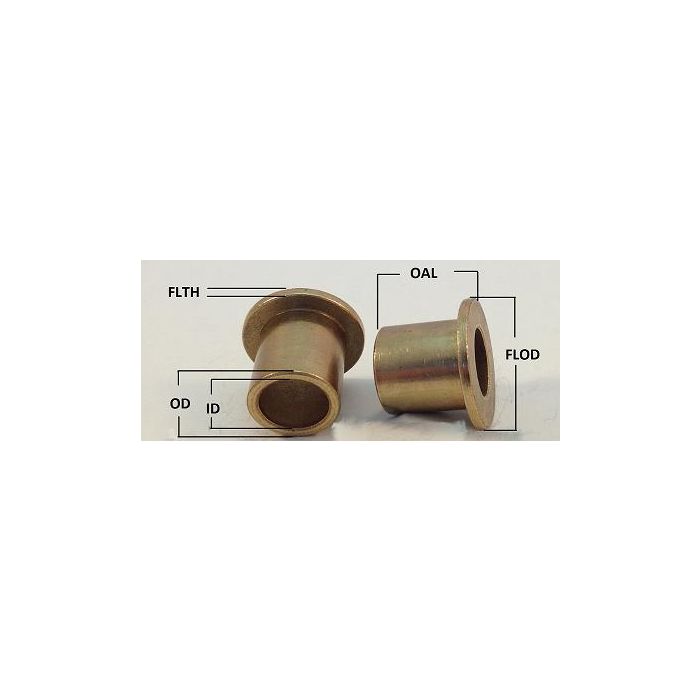

EXEF081208 0.5 IN ID x 0.75 IN OD x 0.5 IN OAL x 1 IN FLOD x 0.125 FLTH 841 Extra Oil/PTFE Impregnated Bronze Flange Bushing
Specifications Catalog Number EXEF081208 841 Extra Oil & PTFE Impregnated Bronze Flanged Bushing
Material Standard 841 Extra Oil & PTFE Impregnated Bronze
Tolerances
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
841 Extra is ideal for stop, start, and slow speed applications. Conformance to ASTM chemical and physical properties.
Max Temperature 220F
Oil Impregnated with SAE 90 oil with a finely dispersed PTFE. The PTFE oil greatly reduces friction and helps to develop a full lubrication film which is especially required on start up. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm
These sintered bronze bushings also provide a smoother and quieter operation, an easier break-in period and longer bearing life.
Standard off-the-shelf 841 Extra Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.
DFARS compliant
Made in the USA
