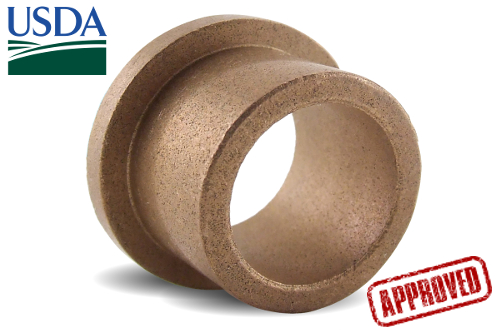

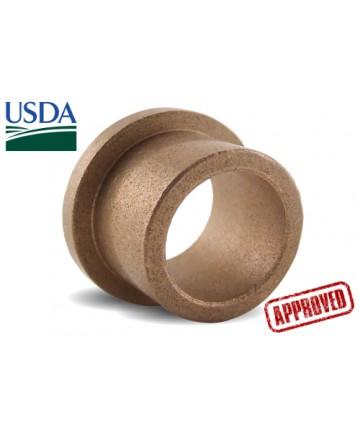

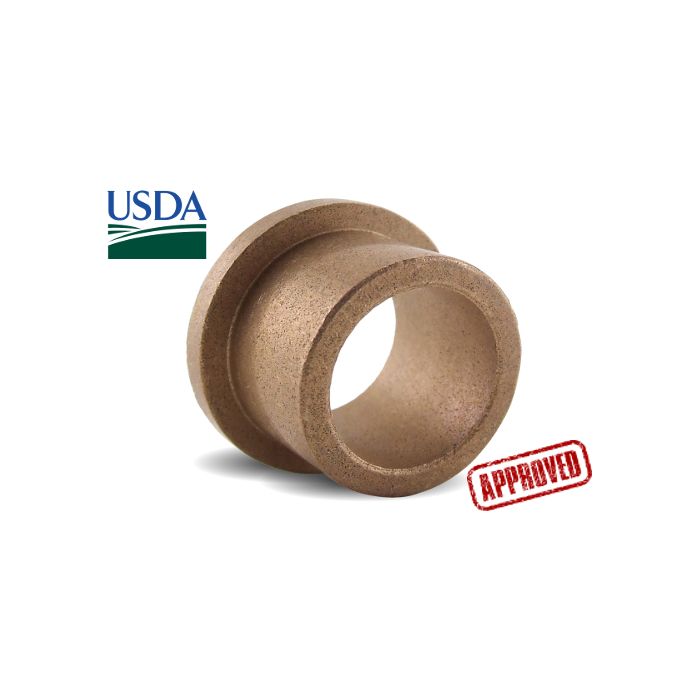

ECOF081020 0.5 ID x 0.625 OD x 1.25 OAL x 0.875 FLOD x 0.125 FLTH ECO Oil Impregnated Bronze Flanged Bushing
Specifications Catalog Number ECOF081020 ECO FDA Approved Oil Impregnated Flanged Bushings
Material Standard ECO FDA Approved Oil Impregnated Bronze
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
ECO Product Range is USDA H-1 Approved. Conformance to ASTM chemical and physical properties.
Max Temperature 220F
Oil Impregnated with USDA Approved Lubricant. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm
These standard sized oil impregnated bearings are suitable for food service applications.
Standard off-the-shelf Eco Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.
Made in the USA
