ECOF050708 | USDA Approved Oil Impregnated Flanged | 5/16 ID x 7/16 OD x 1/2 OAL

ECOF050708 | USDA Approved Oil Impregnated Flanged | 5/16 ID x 7/16 OD x 1/2 OAL

Availability: In stock

Item #:ECOF050708

$1.34

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

ECOF050708

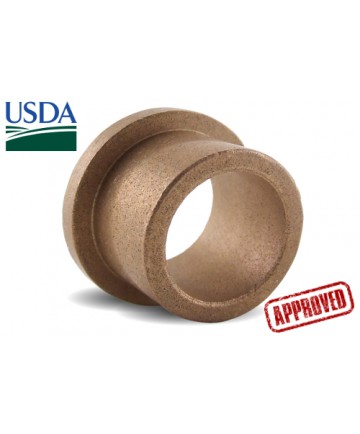

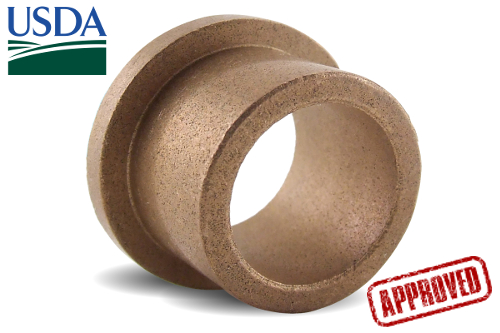

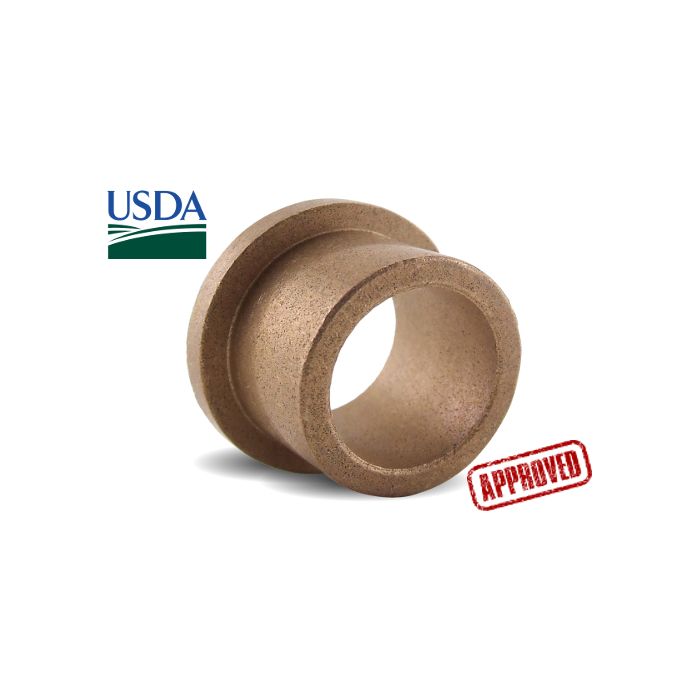

ECOF050708 0.3125 ID x 0.4375 OD x 0.5 OAL x 0.5625 FLOD x 0.0625 FLTH ECO Oil Impregnated Bronze Flanged Bushing

Specifications Catalog Number ECOF050708 ECO FDA Approved Oil Impregnated Flanged Bushings

Material Standard ECO FDA Approved Oil Impregnated Bronze

Tolerances

Inner Diameter Tolerance +0.0010/+0.0020"

Outside Diameter Tolerance+0.0020/+0.0030"

Overall Length Tolerance .005 in

ECO Product Range is USDA H-1 Approved. Conformance to ASTM chemical and physical properties.

Max Temperature 220F

Oil Impregnated with USDA Approved Lubricant. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm

These standard sized oil impregnated bearings are suitable for food service applications.

Standard off-the-shelf Eco Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA

Tags

Product Tags

  • No tags connected to product

Use spaces to separate tags. Use single quotes (') for phrases.

Reviews

  1. Be the first to review this product

WRITE YOUR REVIEW

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Specifications

Specifications

Shipping Notice: Most orders shipped within 24-72 hours. For expedited shipping please select UPS Next Day Air or 2nd Day Air during checkout. These orders will ship same day (Monday-Friday) if ordered before 12:00 pm EST.

Custom Bronze Bushings

ECOF050708 | USDA Approved Oil Impregnated Flanged | 5/16 ID x 7/16 OD x 1/2 OAL

ECOF050708

ECOF050708 0.3125 ID x 0.4375 OD x 0.5 OAL x 0.5625 FLOD x 0.0625 FLTH ECO Oil Impregnated Bronze Flanged Bushing

Specifications Catalog Number ECOF050708 ECO FDA Approved Oil Impregnated Flanged Bushings

Material Standard ECO FDA Approved Oil Impregnated Bronze

Tolerances

Inner Diameter Tolerance +0.0010/+0.0020"

Outside Diameter Tolerance+0.0020/+0.0030"

Overall Length Tolerance .005 in

ECO Product Range is USDA H-1 Approved. Conformance to ASTM chemical and physical properties.

Max Temperature 220F

Oil Impregnated with USDA Approved Lubricant. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm

These standard sized oil impregnated bearings are suitable for food service applications.

Standard off-the-shelf Eco Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA
