ECOF030504

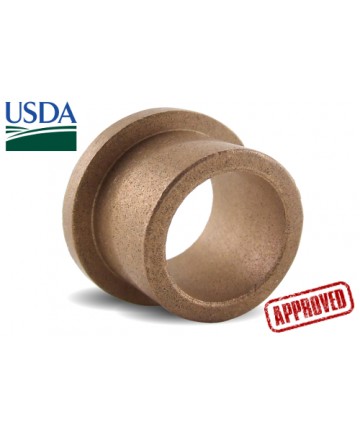

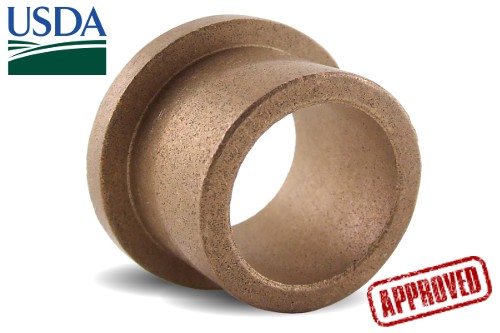

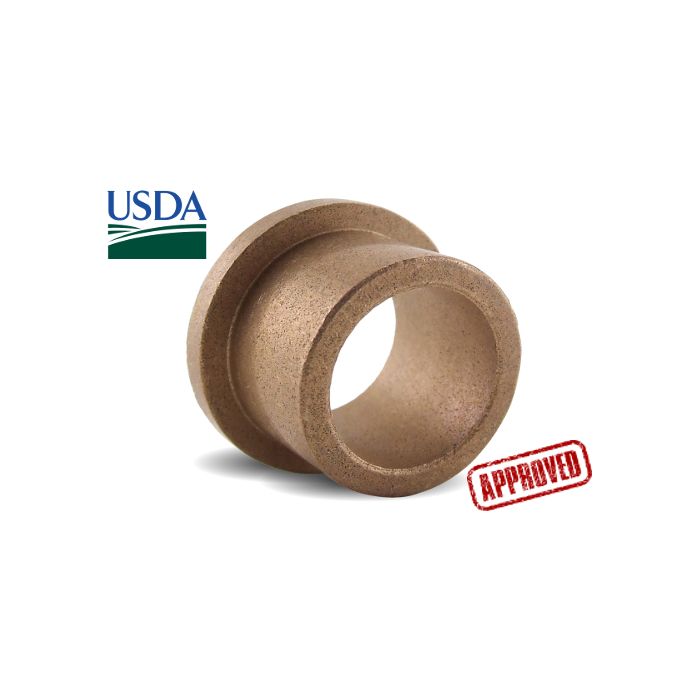

ECOF030504 0.1875 ID x 0.3125 OD x 0.25 OAL x 0.4375 FLOD x 0.0625 FLTH ECO Oil Impregnated Bronze Flanged Bushing
Specifications Catalog Number ECOF030504 ECO FDA Approved Oil Impregnated Flanged Bushings
Material Standard ECO FDA Approved Oil Impregnated Bronze
Tolerances
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
ECO Product Range is USDA H-1 Approved. Conformance to ASTM chemical and physical properties.
Max Temperature 220F
Oil Impregnated with USDA Approved Lubricant. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm
These standard sized oil impregnated bearings are suitable for food service applications.
Standard off-the-shelf Eco Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.
DFARS compliant
Made in the USA
