DPEW244002 | Driplane Thrust Washer | 1-1/2 ID x 2-1/2 OD x 1/8 THICK

DPEW244002 | Driplane Thrust Washer | 1-1/2 ID x 2-1/2 OD x 1/8 THICK

Availability: In stock

Item #:DPEW244002

$11.94

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

DPEW244002

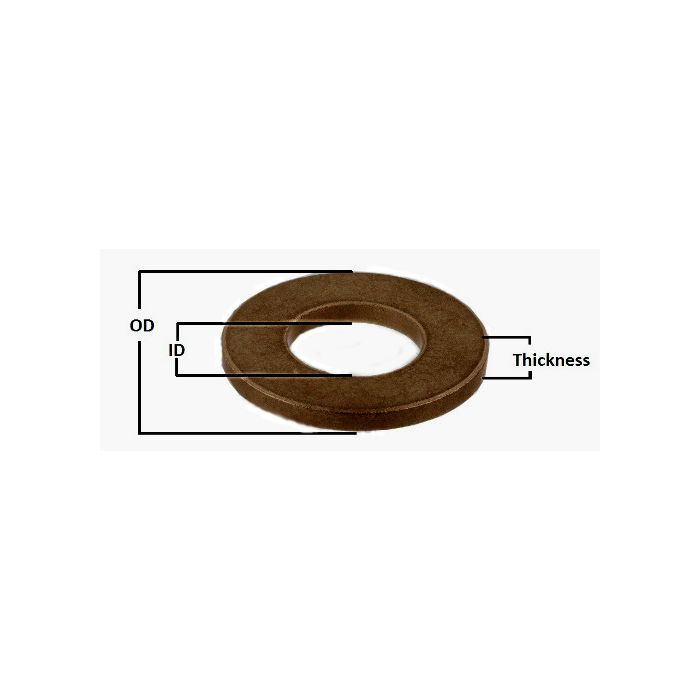

DPEW244002 1.5 IN ID x 2.5 IN OD x 0.125 IN THICK Dri-Plane Bronze Sintered Thrust Washer

Specifications Catalog Number DPEW244002 Dri-Plane Sintered Bronze Thrust Washer

Material Standard Dri-Plane Powdered Metal Bronze

Tolerances

Inner Diameter Tolerance +0.0010/+0.0020"

Outside Diameter Tolerance +0.0030/+0.0040"

Dry lubricated ideal for applications that cannot have contamination of oil that is associated with most oil impregnated bronze bearings.

Max Temperature 700F

No oil for lubrication, therefore cleaner and no out gassing. Non Magnetic- Max PV 40,000, Max P 1,600 psi, Max V 1,000 sfpm

Standard off-the-shelf dri-plane bronze bearings should function satisfactorily in temperatures up to 700F.

DFARS compliant

Made in the USA
