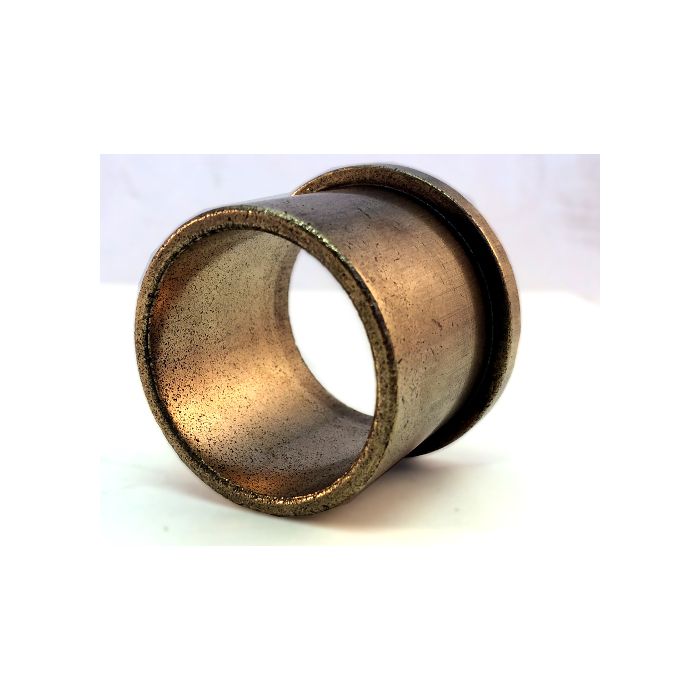

DPEF121408 | Driplane Flanged Bushing | 3/4 ID x 7/8 OD x 1/2 OAL x 1-1/8 FL

DPEF121408 | Driplane Flanged Bushing | 3/4 ID x 7/8 OD x 1/2 OAL x 1-1/8 FL

Availability: In stock

Item #:DPEF121408

$3.70

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

DPEF121408 Dri Plane Flanged, P/M, 3/4 " ID x 7/8 " OD x 1/2 " OAL 1 1/8 " FLOD x 1/8 " FLTH

DPEF121408

DPEF121408 Dri Plane Flanged, P/M, 3/4 " ID x 7/8 " OD x 1/2 " OAL 1 1/8 " FLOD x 1/8 " FLTH

Specifications Catalog Number DPEF121408 Dri-Plane Sintered Bronze Flanged Bearing

Material Standard Dri-Plane Powdered Metal Bronze

Tolerances

Inner Diameter Tolerance +0.0010/+0.0020"

Outside Diameter Tolerance+0.0020/+0.0030"

Overall Length Tolerance .005 in

Dry lubricated ideal for applications that cannot have contamination of oil that is associated with most oil impregnated bronze bearings.

Max Temperature 700F

No oil for lubrication, therefore cleaner and no out gassing. Non Magnetic- Max PV 40,000, Max P 1,600 psi, Max V 1,000 sfpm

Standard off-the-shelf dri-plane bronze bearings should function satisfactorily in temperatures up to 700F.

DFARS compliant

Made in the USA
