CFM012015012 12 mm ID x 15 mm OD x 12 mm OAL x 18 mm FLOD x 1.5 mm FLTH

CFM012015012

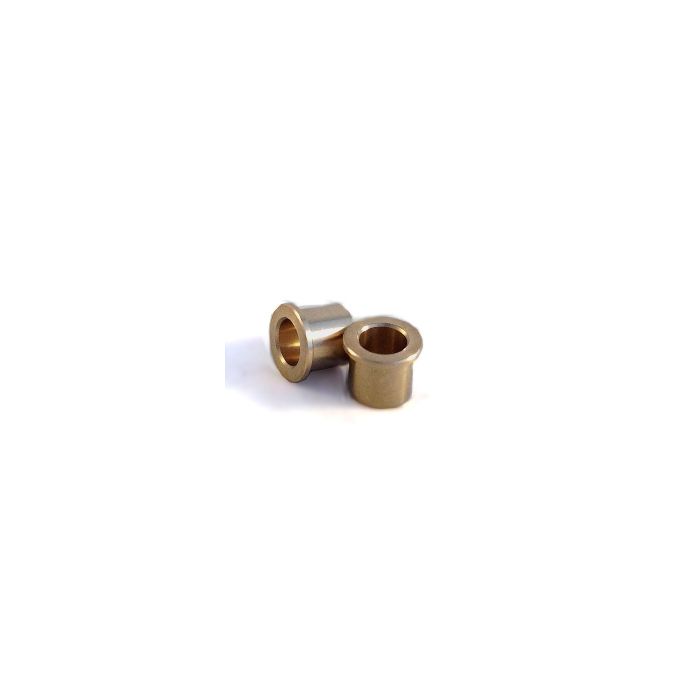

CFM012015012 12 mm ID x 15 mm OD x 12 mm OAL x 18 mm FLOD x 1.5 mm FLTH C93200 / SAE 660 Metric Flanged Bushing

Specifications: Catalog Number CFM012015012 C93200 SAE 660 Metric Cast Bronze Flanged Bearing

Material: Continuous Cast Bronze / ASTM B505

Material Standard SAE 660/C93200

Tolerances

Inner Diameter Tolerance +/- 0.025 millimeters

Outside Diameter Tolerance + 0.050 /+ 0.076 millimeters

Chemical Composition- Copper (83%), Tin (7%), Lead (7%) Zinc (3%)

QQ-C-390B, Type III

Ideal for most general bearing applications. Additional lubrication may be necessary - Max PV 75,000, Max P 4,000, Max V 750

These standard size cast bronze bearings provide off the shelf economy for most applications. The CB Cast Bronze Bearings may be easily resized, oil grooved, or drilled to meet special requirements

Cast Bronze Bearings are machined from continuous cast C93200 Bearing Bronze per ASTM B505. The continuous casting process ensures a uniform grain structure throughout the bearing.

Standard off-the-shelf cast bronze bearings should function satisfactorily in temperatures up to 450F.

DFARS compliant

Made in the USA
