  • CB-1416-11 | Cast Bronze Sleeve | 7/8 ID x 1 OD x 1-3/8 OAL
CB-1416-11 | Cast Bronze Sleeve | 7/8 ID x 1 OD x 1-3/8 OAL

CB-1416-11 | Cast Bronze Sleeve | 7/8 ID x 1 OD x 1-3/8 OAL

Availability: In stock

Item #:C1416-11

$9.36

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

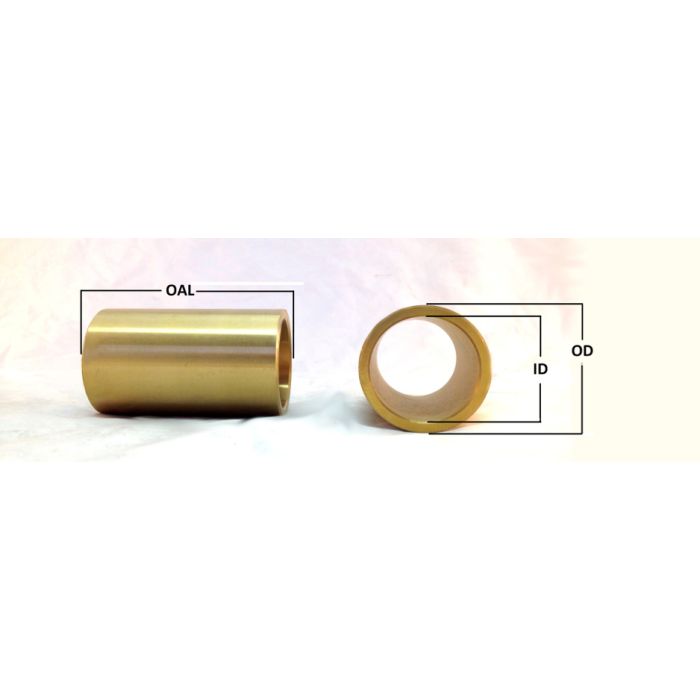

Cast Bronze Sleeve Bushing 7/8 in ID x 1 in OD x 1 3/8 in OAL

C1416-11

7/8 in IN I.D. X 1 in IN O.D. X 1 3/8 in IN Overall Length, C93200 SAE 660 Cast Bronze, Sleeve Bearing

SpecificationsCatalog NumberCB-1416-11 C93200 SAE 660 Cast Bronze Sleeve Bearing

MaterialContinuous Cast Bronze / ASTM B505

Material Standard SAE 660/C93200

Tolerances

Inner Diameter Tolerance +.001 -.001 in

Outside Diameter Tolerance+.002 to .003 in

Overall Length Tolerance .005 in

Chemical Composition- Copper (83%), Tin (7%), Lead (7%) Zinc (3%)

QQ-C-390B, Type III

Ideal for most general bearing applications. Additional lubrication may be necessary - Max PV 75,000, Max P 4,000, Max V 750

These standard size cast bronze bearings provide off the shelf economy for most applications. The CB Cast Bronze Bearings may be easily resized, oil grooved, or drilled to meet special requirements

Cast Bronze Bearings are machined from continuous cast C93200 Bearing Bronze per ASTM B505. The continuous casting process ensures a uniform grain structure throughout the bearing.

Standard off-the-shelf cast bronze bearings should function satisfactorily in temperatures up to 450F.

DFARS compliant

Made in the USA
