BBTW024040004 | BB-16 Sintered Iron/Copper Washer | 3/4 ID x 1-1/4 OD x 1/8 THIC

BBTW024040004 | BB-16 Sintered Iron/Copper Washer | 3/4 ID x 1-1/4 OD x 1/8 THIC

Availability: In stock

Item #:BBTW024040004

$8.31

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

BBTW024040004

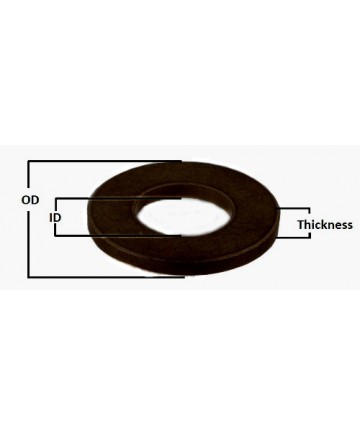

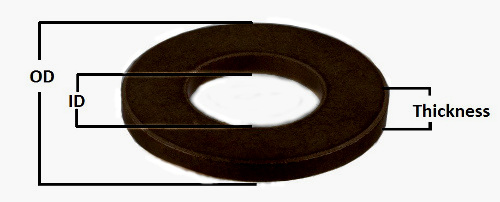

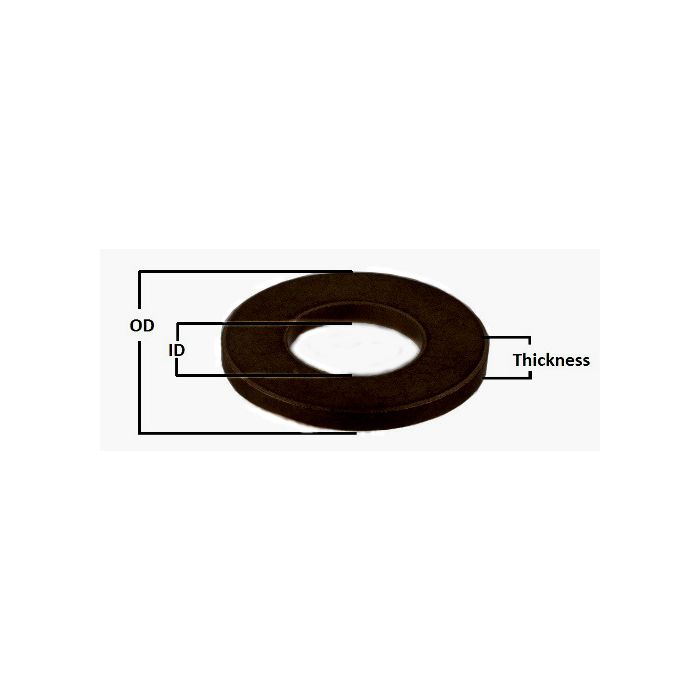

BBTW024040004 0.75 IN ID x 1.25 IN OD x 0.125 IN THICK BB-16 Sintered Iron-Copper Thrust Washer

Specifications Catalog Number BBTW024040004 BB-16 Sintered Iron-Copper P/M Thrust Washer

Material Standard: BB-16 Heat Treated to a particle hardness greater than Rc50

Tolerances

Inner Diameter Tolerance +0.0020/+0.0060"

Outside Diameter Tolerance -0.0020/+0.0080"p>

These oil impregnated thrust washers are impregnated with extreme pressure oil for self-lubricating properties.

Max Temperature 220F

Typically used for heavy loaded applications. These thrust washers have excellent compressive strength, wearability, and shock resistance- Max PV 75,000, Max P 5,000 psi, Max V 35 sfpm

Standard off-the-shelf BB-16 bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA
