  • BBEF323632 | BB-16 Sintered Iron/Copper Flanged | 2 ID x 2-1/4 OD x 2 OAL x 2-1/
BBEF323632 | BB-16 Sintered Iron/Copper Flanged | 2 ID x 2-1/4 OD x 2 OAL x 2-1/

BBEF323632 | BB-16 Sintered Iron/Copper Flanged | 2 ID x 2-1/4 OD x 2 OAL x 2-1/

Availability: In stock

Item #:BBEF323632

$134.12

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

BBEF323632

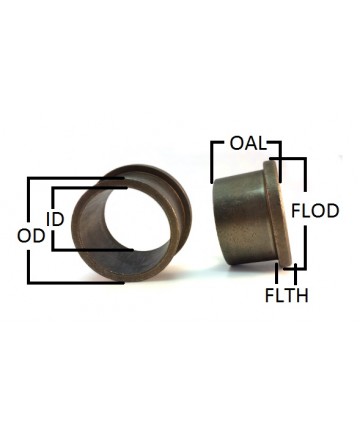

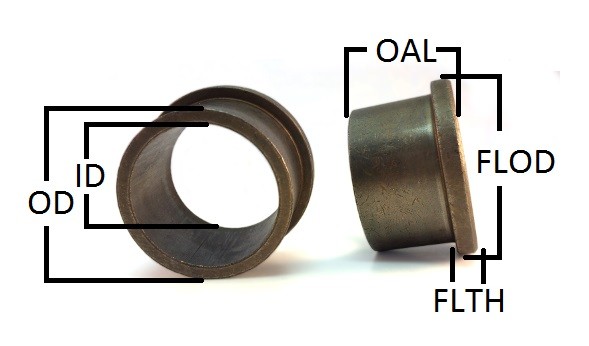

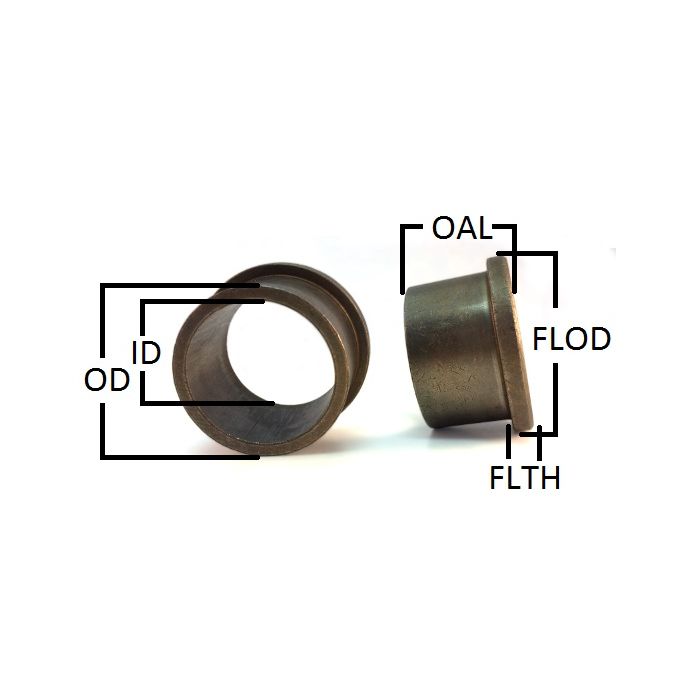

BBEF323632 Flanged BB16 , 2 " ID x 2 1/4 " OD x 2 " OAL 2 1/2 " FLOD x 1/8 " FLTH Powdered Metal Copper Iron BB-16

Specifications Catalog Number BBEF323632 BB-16 Sintered Iron-Copper P/M Flanged Bearing

Material Standard: BB-16 Heat Treated to a particle hardness greater than Rc50

Tolerances

Inner Diameter Tolerance +0.0010"/+0.0030"

Outside Diameter Tolerance+0.0020"/+0.0040"

Overall Length Tolerance .005 in

These oil impregnated bushings are impregnated with extreme pressure oil for self-lubricating properties.

Max Temperature 220F

Typically used for heavy loaded applications. These bushings have excellent compressive strength, wearability, and shock resistance- Max PV 75,000, Max P 5,000 psi, Max V 35 sfpm

Standard off-the-shelf BB-16 bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA

Tags

Product Tags

  • No tags connected to product

Use spaces to separate tags. Use single quotes (') for phrases.

Reviews

  1. Be the first to review this product

WRITE YOUR REVIEW

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Specifications

Specifications

Shipping Notice: Most orders shipped within 24-72 hours. For expedited shipping please select UPS Next Day Air or 2nd Day Air during checkout. These orders will ship same day (Monday-Friday) if ordered before 12:00 pm EST.

Custom Bronze Bushings

BBEF323632 | BB-16 Sintered Iron/Copper Flanged | 2 ID x 2-1/4 OD x 2 OAL x 2-1/

BBEF323632

BBEF323632 Flanged BB16 , 2 " ID x 2 1/4 " OD x 2 " OAL 2 1/2 " FLOD x 1/8 " FLTH Powdered Metal Copper Iron BB-16

Specifications Catalog Number BBEF323632 BB-16 Sintered Iron-Copper P/M Flanged Bearing

Material Standard: BB-16 Heat Treated to a particle hardness greater than Rc50

Tolerances

Inner Diameter Tolerance +0.0010"/+0.0030"

Outside Diameter Tolerance+0.0020"/+0.0040"

Overall Length Tolerance .005 in

These oil impregnated bushings are impregnated with extreme pressure oil for self-lubricating properties.

Max Temperature 220F

Typically used for heavy loaded applications. These bushings have excellent compressive strength, wearability, and shock resistance- Max PV 75,000, Max P 5,000 psi, Max V 35 sfpm

Standard off-the-shelf BB-16 bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA

$134.12
