BBEF162024 | BB-16 Sintered Iron/Copper Flanged | 1 ID x 1-1/4 OD x 1 1/2 OA

BBEF162024 | BB-16 Sintered Iron/Copper Flanged | 1 ID x 1-1/4 OD x 1 1/2 OA

Availability: In stock

Item #:BBEF162024

$91.88

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

BBEF162024

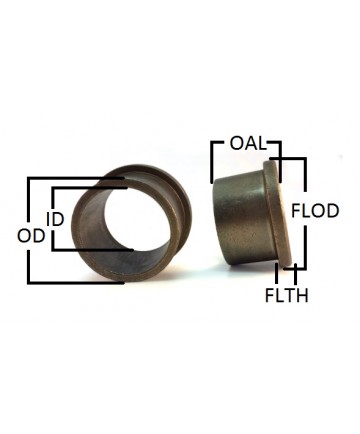

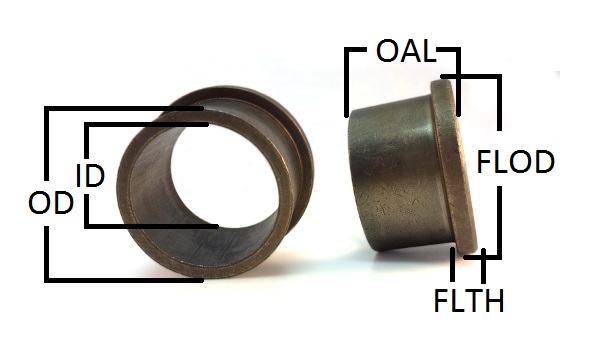

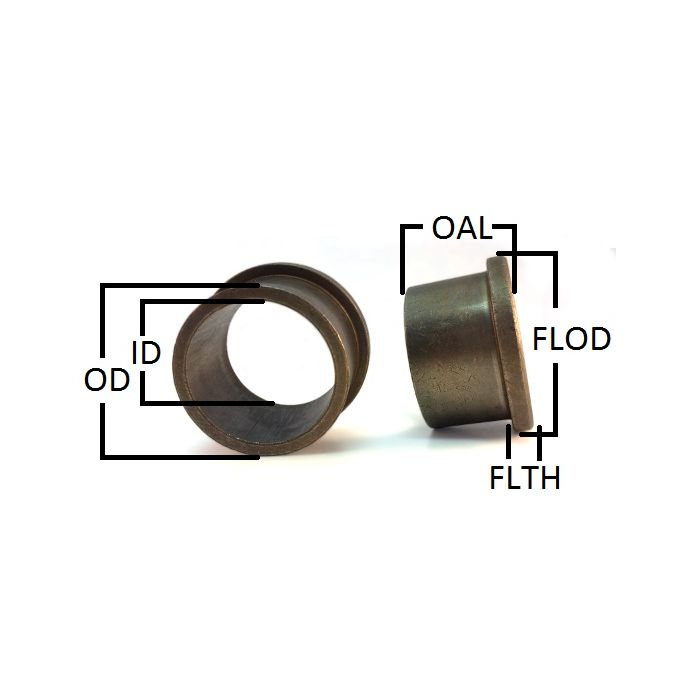

BBEF162024 Flanged BB16 , 1 " ID x 1 1/4 " OD x 1 1/2 " OAL 1 1/2 " FLOD x 1/8 " FLTH Powdered Metal Copper Iron BB-16

Specifications Catalog Number BBEF162024 BB-16 Sintered Iron-Copper P/M Flanged Bearing

Material Standard: BB-16 Heat Treated to a particle hardness greater than Rc50

Tolerances

Inner Diameter Tolerance +0.0010"/+0.0030"

Outside Diameter Tolerance+0.0020"/+0.0040"

Overall Length Tolerance .005 in

These oil impregnated bushings are impregnated with extreme pressure oil for self-lubricating properties.

Max Temperature 220F

Typically used for heavy loaded applications. These bushings have excellent compressive strength, wearability, and shock resistance- Max PV 75,000, Max P 5,000 psi, Max V 35 sfpm

Standard off-the-shelf BB-16 bronze bearings should function satisfactorily in temperatures up to 220F.

DFARS compliant

Made in the USA
