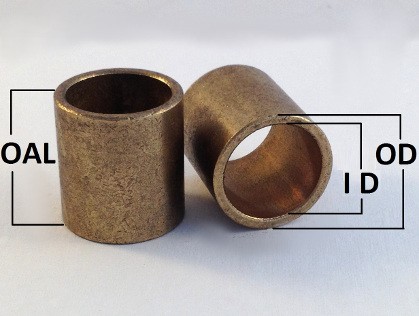

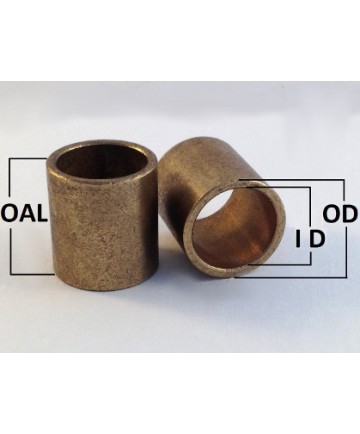

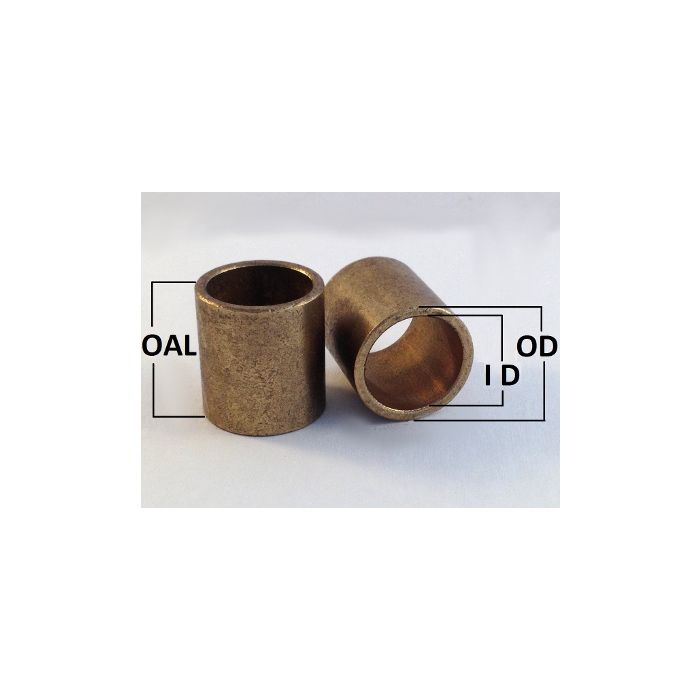

AA-110-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL

AA-110-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL

Availability: In stock

Item #:101006

$4.09

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

AA-110-2 SAE841 SLEEVE 1/8 ID x 3/16 OD x 1/4 OAL

101006

0.1265 IN I.D. X 0.1895 IN O.D. X 0.25 IN Overall Length, SAE 841 Powdered Metal Bronze, Sleeve Bearing

SpecificationsCatalog NumberAA-110-2 SAE841 SLEEVE Bearing Oil Impregnated Bronze

MaterialPowdered Metal / Oil Impregnated Bronze

Material StandardSAE 841

Tolerances

Inner Diameter Tolerance +.000 -.001 in

Outside Diameter Tolerance+.000 -.001 in

Overall Length Tolerance .005 in

Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%

MPIF: CT-1000-K26

ASTM: B438 Grade 1, Type 2 Class A

SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1

Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200

Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest.

After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation.

Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.

RoHS, REACH, DFARS compliant

Made in the USA
