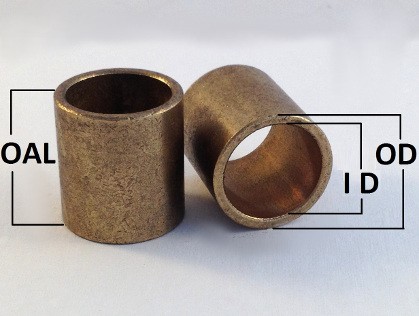

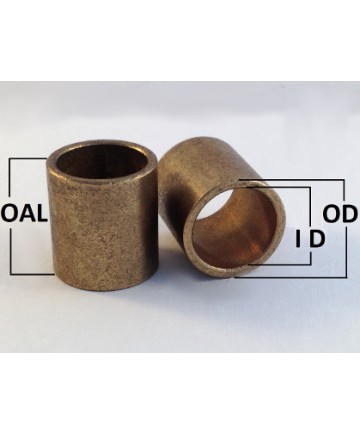

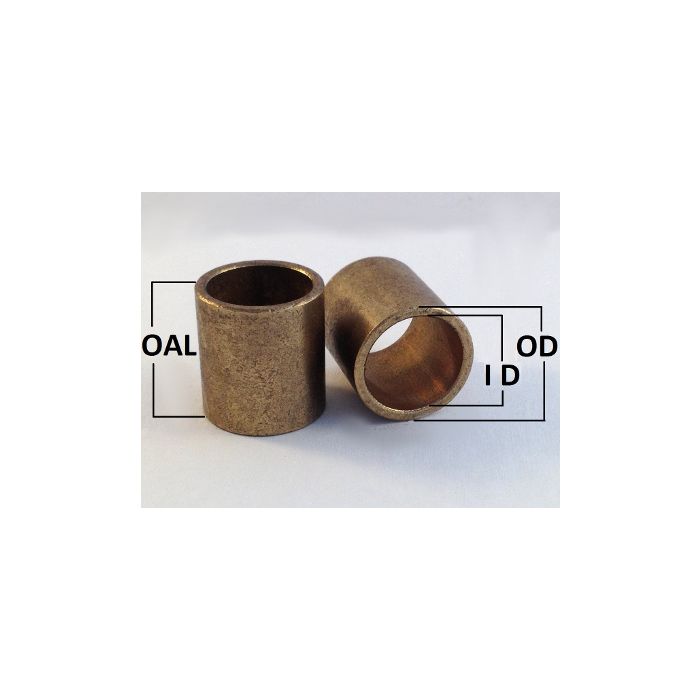

AA-101-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL

AA-101-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL

Availability: In stock

Item #:101002

$4.09

Be the first to review this product

Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

Product Description

Details

AA-101-2 SAE841 SLEEVE 1/8 ID x 3/16 OD x 1/4 OAL1010020.125 IN I.D. X 0.190 IN O.D. X 0.25 IN Length, SAE 841 Powdered Metal Bronze, Sleeve BearingSpecificationsCatalog NumberAA-101-2 SAE841 SLEEVE Bearing Oil Impregnated BronzeMaterialPowdered Metal / Oil Impregnated BronzeMaterial StandardSAE 841TolerancesInner Diameter Tolerance +.000 -.001 inOutside Diameter Tolerance+.000 -.001 inOverall Length Tolerance .005 inChemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%MPIF: CT-1000-K26 ASTM: B438 Grade 1, Type 2 Class ASAE 841 - BronzeMil-B-5687 Type 1, Grade 1Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.RoHS, REACH, DFARS compliant Made in the USA

Tags

Product Tags

  • No tags connected to product

Use spaces to separate tags. Use single quotes (') for phrases.

Reviews

  1. Be the first to review this product

WRITE YOUR REVIEW

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Specifications

Specifications

Shipping Notice: Most orders shipped within 24-72 hours. For expedited shipping please select UPS Next Day Air or 2nd Day Air during checkout. These orders will ship same day (Monday-Friday) if ordered before 12:00 pm EST.

Custom Bronze Bushings

AA-101-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL
AA-101-2 SAE841 SLEEVE 1/8 ID x 3/16 OD x 1/4 OAL1010020.125 IN I.D. X 0.190 IN O.D. X 0.25 IN Length, SAE 841 Powdered Metal Bronze, Sleeve BearingSpecificationsCatalog NumberAA-101-2 SAE841 SLEEVE Bearing Oil Impregnated BronzeMaterialPowdered Metal / Oil Impregnated BronzeMaterial StandardSAE 841TolerancesInner Diameter Tolerance +.000 -.001 inOutside Diameter Tolerance+.000 -.001 inOverall Length Tolerance .005 inChemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%MPIF: CT-1000-K26 ASTM: B438 Grade 1, Type 2 Class ASAE 841 - BronzeMil-B-5687 Type 1, Grade 1Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.RoHS, REACH, DFARS compliant Made in the USA
